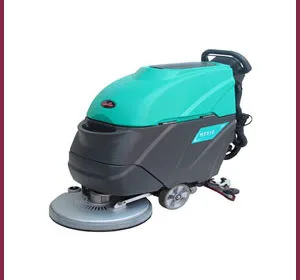

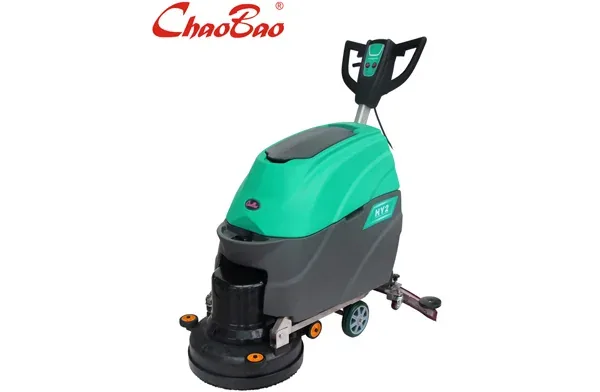

Corded Floor Scrubber-Dryer

Product Overview

Key Features

• Capacity: 155 RPM
• Brush Diameter: 18”
• Brush Pressure: 25 kg
• Water Sucker Motor: 400W
• Warranty: One year Service Warranty for Machin

Benefits

• One machine for water and dry
• Saves time on large areas
• Commercial and industrial

Where Can You Use It?

How to Use

1. • Setup: Click the brush onto the bottom hub, fill the clean water tank with water and low-foaming detergent, and plug in the power cord.
2. • Turn On: Lower the rear squeegee assembly to the floor, then switch on both the vacuum motor and the brush motor.
3. • Operate: Squeeze the handle triggers to spin the brush and pull the water lever to release cleaning solution. Walk slowly forward in straight lines.
4. • Clean Up: Turn off the switches, unplug the machine, drain the dirty water tank completely, and rinse the brush and squeegee blades.

Specifications

Brand	Chaobao
Size	33
Power	1200W
Volt	220V-240V / 50HZ
Capacity	155 RPM
Brush Pressure	25 kg
Water Sucker Motor	400W
Power Cable Length	18m
Max Working Capacity	1600 Sq m/h
Clean Water Tank Capacity	33 L
Dirty Water Tank Capacity	33 L
Ingredients / material	The Chaobao HY2 Scrubber is built with a rust-proof polyethylene and ABS plastic body resting on a steel frame, and it should only be filled with low-foaming floor detergents to protect its copper motor and internal rubber seals.
Weight	76 kg

Safety & Storage

• • Cord Safety: Always keep the 12-meter power cable behind the machine. Never run over the power cord with the rotating brush.
• • Liquid Hazards: Use only low-foaming detergents. Excess foam can bypass the vacuum float filter, enter the motor, and cause an electrical short or motor burnout.
• • Body & Clothing Protection: Wear non-slip safety shoes to prevent slipping on wet floors. Keep loose clothing, long hair, and fingers away from the moving brush hub.
• • Slope Limits: Do not operate the machine on ramps or slopes exceeding a 2% incline to prevent tipping or losing control.
• • Power Isolation: Always turn off all switches and unplug the cord before changing the brush, cleaning the tanks, or leaving the machine unattended.

Storage: • Drain and Rinse: Empty the dirty recovery tank completely and rinse out any leftover sludge to prevent mold and foul odors. • Raise the Squeegee: Leave the rear squeegee assembly in the raised position so the rubber blades do not warp or flatten against the floor. • Remove the Brush: Detach the scrubbing brush or pad driver to prevent the bristles from bending and distorting under the machine's weight. • Wrap the Cord: Unplug the 12-meter power cable and wrap it neatly around the designated handle hooks to prevent tripping hazards or wire damage. • Environment: Store the machine indoors in a cool, dry place away from direct sunlight, freezing temperatures, and heavy traffic zones.
